Clear water discharge with decanters from ATB WATER - guaranteed to be the safest solution

ATB decanters are suitable for discharging the treated wastewater after the cleaning process. The decanters are floating and designed in such a way that the clear water discharge takes place below the water level. Only the clear water layer is discharged without disturbing the floating and bottom sludge. If clear water discharge by gravity is not possible, pumps can be used to assist the process.



To the flip page catalog

ATB-CWE-P Pump Decanter

ATB-CWE-P Pump Decanter

  • Applications: SBR process, withdrawal of surface water, sedimentation basins
  • Discharge system: Flexible hose as pressure line to the edge of the basin
  • Capacity range: 25 or 50 m3/h
  • Horizontal open inlet area: Yes
  • Automatic closing system: No
  • Pump for draining: Yes
  • Installation: Floating
  • Material: Submersible pump stainless steel, float and discharge weir PE
  • Your advantages:
    ✔ No stirring up of sedimented sludge
    ✔ Avoids the discharge of floating sludge
    ✔ Easy installation


Inquiry

ATB-CWE Decanter with open discharge weir

ATB-CWE Decanter with open discharge weir

  • Applications: SBR process, settling tank for sewage sludge, sludge pre-thickening, general decantation
  • Discharge system: Flexible hoses or stainless steel pipe systems as telescopic or swivel joint system, if necessary with pump
  • Capacity range: From 50 to 1,500 m3/h
  • Horizontally opened inflow area: Yes
  • Automatic closing system: No
  • Pump for draining: Optional
  • Installation: Floating
  • Material: Stainless steel V2A and V4A
  • Your advantages:
    ✔ No stirring up of sedimented sludge
    ✔ Avoids the discharge of floating sludge
    ✔ Easy installation


Inquiry

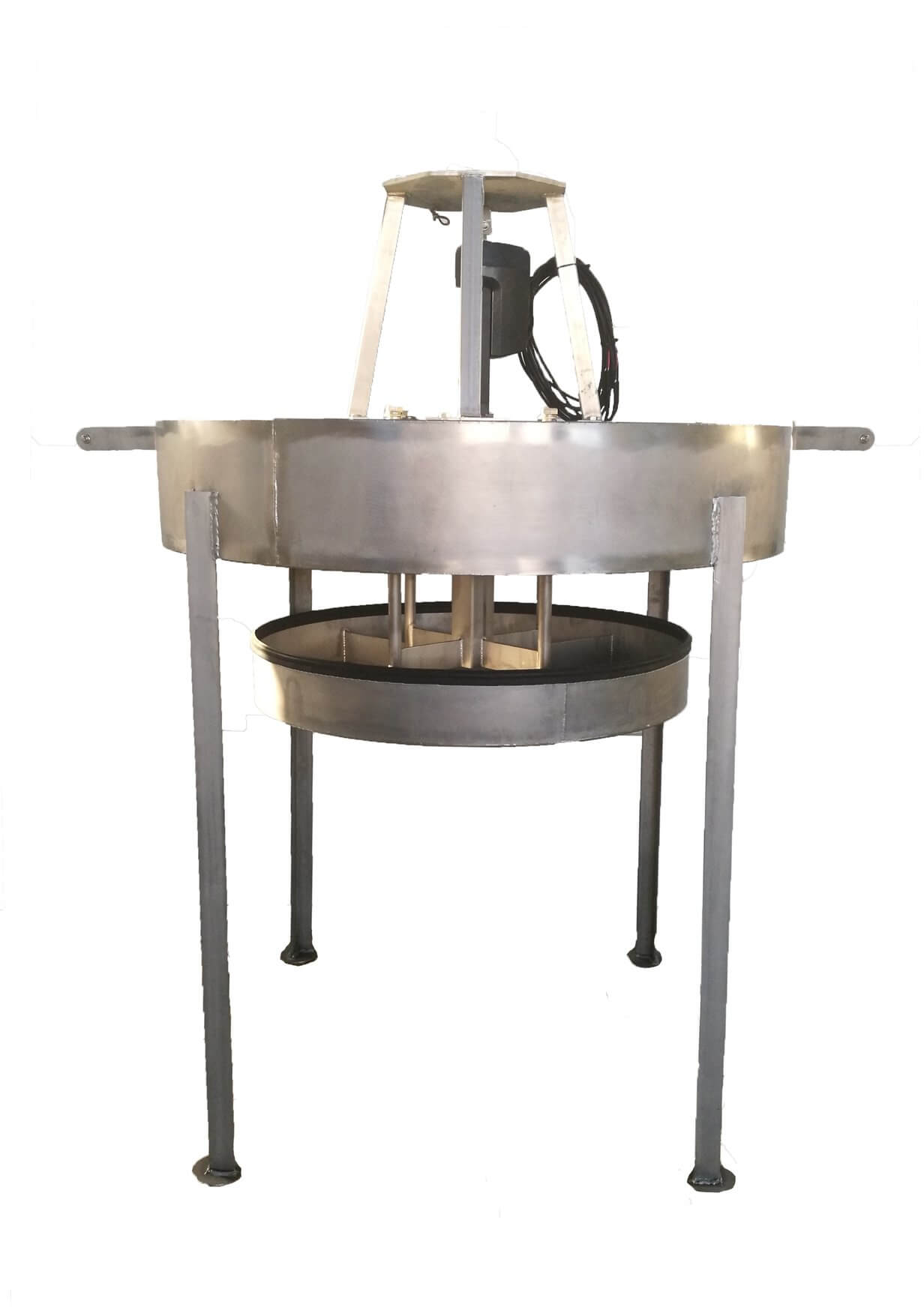

ATB-CWE-EMC Decanter with closable discharge weir

ATB-CWE-EMC Decanter with closable discharge weir

  • Applications: SBR process, settling tank for sewage sludge, sludge pre-thickening, general decanting
  • Drainage system: Flexible hoses or stainless steel pipe systems as telescopic or swivel joint system
  • Capacity range: From 50 to 1,500 m3/h
  • Horizontal open inlet: Yes
  • Automatic closing system: Yes
  • Drainage pump: No
  • Installation: Floating
  • Material: Stainless steel V2A and V4A
  • Your advantages:
    ✔ Thanks to the automatic closure system during aeration and mixing, no sludge can get into the overflow
    ✔ No stirring up of sedimented sludge
    ✔ Avoids the discharge of floating sludge
    ✔ Easy installation


Inquiry
